kornia.morphology

kornia.morphology.dilation(tensor, kernel, structuring_element=None, origin=None, border_type='geodesic', border_value=0.0, max_val=10000.0, engine='unfold')[source]

Return the dilated image applying the same kernel in each channel.

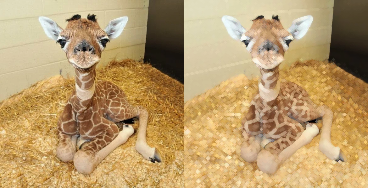

_images/dilation.png

The kernel must have 2 dimensions.

Parameters

  • tensor (Tensor) – Image with shape \((B, C, H, W)\).

  • kernel (Tensor) – Positions of non-infinite elements of a flat structuring element. Non-zero values give the set of neighbors of the center over which the operation is applied. Its shape is \((k_x, k_y)\). For full structural elements use torch.ones_like(structural_element).

  • structuring_element (Optional[Tensor], optional) – Structuring element used for the grayscale dilation. It may be a non-flat structuring element. Default: None

  • origin (Optional[List[int]], optional) – Origin of the structuring element. Default: None and uses the center of the structuring element as origin (rounding towards zero).

  • border_type (str, optional) – It determines how the image borders are handled, where border_value is the value when border_type is equal to constant. Default: geodesic which ignores the values that are outside the image when applying the operation.

  • border_value (float, optional) – Value to fill past edges of input if border_type is constant. Default: 0.0

  • max_val (float, optional) – The value of the infinite elements in the kernel. Default: 10000.0

  • engine (str, optional) – convolution is faster and less memory hungry, and unfold is more stable numerically Default: 'unfold'

Return type

Tensor

Returns

Dilated image with shape \((B, C, H, W)\).

Note

See a working example here.

Example

>>> tensor = torch.rand(1, 3, 5, 5)
>>> kernel = torch.ones(3, 3)
>>> dilated_img = dilation(tensor, kernel)
kornia.morphology.erosion(tensor, kernel, structuring_element=None, origin=None, border_type='geodesic', border_value=0.0, max_val=10000.0, engine='unfold')[source]

Return the eroded image applying the same kernel in each channel.

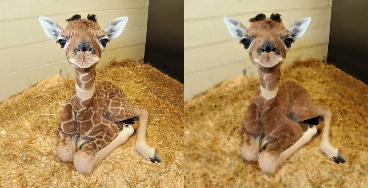

_images/erosion.png

The kernel must have 2 dimensions.

Parameters

  • tensor (Tensor) – Image with shape \((B, C, H, W)\).

  • kernel (Tensor) – Positions of non-infinite elements of a flat structuring element. Non-zero values give the set of neighbors of the center over which the operation is applied. Its shape is \((k_x, k_y)\). For full structural elements use torch.ones_like(structural_element).

  • structuring_element (torch.Tensor, optional) – Structuring element used for the grayscale dilation. It may be a non-flat structuring element. Default: None

  • origin (Optional[List[int]], optional) – Origin of the structuring element. Default: None and uses the center of the structuring element as origin (rounding towards zero).

  • border_type (str, optional) – It determines how the image borders are handled, where border_value is the value when border_type is equal to constant. Default: geodesic which ignores the values that are outside the image when applying the operation.

  • border_value (float, optional) – Value to fill past edges of input if border_type is constant. Default: 0.0

  • max_val (float, optional) – The value of the infinite elements in the kernel. Default: 10000.0

  • engine (str, optional) – convolution is faster and less memory hungry, and unfold is more stable numerically Default: 'unfold'

Return type

Tensor

Returns

Eroded image with shape \((B, C, H, W)\).

Note

See a working example here.

Example

>>> tensor = torch.rand(1, 3, 5, 5)
>>> kernel = torch.ones(5, 5)
>>> output = erosion(tensor, kernel)
kornia.morphology.opening(tensor, kernel, structuring_element=None, origin=None, border_type='geodesic', border_value=0.0, max_val=10000.0, engine='unfold')[source]

Return the opened image, (that means, dilation after an erosion) applying the same kernel in each channel.

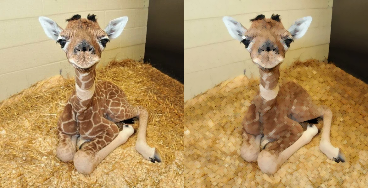

_images/opening.png

The kernel must have 2 dimensions.

Parameters

  • tensor (Tensor) – Image with shape \((B, C, H, W)\).

  • kernel (Tensor) – Positions of non-infinite elements of a flat structuring element. Non-zero values give the set of neighbors of the center over which the operation is applied. Its shape is \((k_x, k_y)\). For full structural elements use torch.ones_like(structural_element).

  • structuring_element (Optional[Tensor], optional) – Structuring element used for the grayscale dilation. It may be a non-flat structuring element. Default: None

  • origin (Optional[List[int]], optional) – Origin of the structuring element. Default: None and uses the center of the structuring element as origin (rounding towards zero).

  • border_type (str, optional) – It determines how the image borders are handled, where border_value is the value when border_type is equal to constant. Default: geodesic which ignores the values that are outside the image when applying the operation.

  • border_value (float, optional) – Value to fill past edges of input if border_type is constant. Default: 0.0

  • max_val (float, optional) – The value of the infinite elements in the kernel. Default: 10000.0

  • engine (str, optional) – convolution is faster and less memory hungry, and unfold is more stable numerically Default: 'unfold'

Returns

Opened image with shape \((B, C, H, W)\).

Return type

torch.Tensor

Note

See a working example here.

Example

>>> tensor = torch.rand(1, 3, 5, 5)
>>> kernel = torch.ones(3, 3)
>>> opened_img = opening(tensor, kernel)
kornia.morphology.closing(tensor, kernel, structuring_element=None, origin=None, border_type='geodesic', border_value=0.0, max_val=10000.0, engine='unfold')[source]

Return the closed image, (that means, erosion after a dilation) applying the same kernel in each channel.

_images/closing.png

The kernel must have 2 dimensions.

Parameters

  • tensor (Tensor) – Image with shape \((B, C, H, W)\).

  • kernel (Tensor) – Positions of non-infinite elements of a flat structuring element. Non-zero values give the set of neighbors of the center over which the operation is applied. Its shape is \((k_x, k_y)\). For full structural elements use torch.ones_like(structural_element).

  • structuring_element (Optional[Tensor], optional) – Structuring element used for the grayscale dilation. It may be a non-flat structuring element. Default: None

  • origin (Optional[List[int]], optional) – Origin of the structuring element. Default is None and uses the center of the structuring element as origin (rounding towards zero). Default: None

  • border_type (str, optional) – It determines how the image borders are handled, where border_value is the value when border_type is equal to constant. Default: geodesic which ignores the values that are outside the image when applying the operation.

  • border_value (float, optional) – Value to fill past edges of input if border_type is constant. Default: 0.0

  • max_val (float, optional) – The value of the infinite elements in the kernel. Default: 10000.0

  • engine (str, optional) – convolution is faster and less memory hungry, and unfold is more stable numerically Default: 'unfold'

Return type

Tensor

Returns

Closed image with shape \((B, C, H, W)\).

Note

See a working example here.

Example

>>> tensor = torch.rand(1, 3, 5, 5)
>>> kernel = torch.ones(3, 3)
>>> closed_img = closing(tensor, kernel)
kornia.morphology.gradient(tensor, kernel, structuring_element=None, origin=None, border_type='geodesic', border_value=0.0, max_val=10000.0, engine='unfold')[source]

Return the morphological gradient of an image.

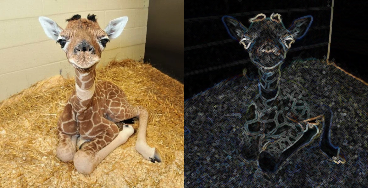

_images/gradient.png

That means, (dilation - erosion) applying the same kernel in each channel. The kernel must have 2 dimensions.

Parameters

  • tensor (Tensor) – Image with shape \((B, C, H, W)\).

  • kernel (Tensor) – Positions of non-infinite elements of a flat structuring element. Non-zero values give the set of neighbors of the center over which the operation is applied. Its shape is \((k_x, k_y)\). For full structural elements use torch.ones_like(structural_element).

  • structuring_element (Optional[Tensor], optional) – Structuring element used for the grayscale dilation. It may be a non-flat structuring element. Default: None

  • origin (Optional[List[int]], optional) – Origin of the structuring element. Default is None and uses the center of the structuring element as origin (rounding towards zero). Default: None

  • border_type (str, optional) – It determines how the image borders are handled, where border_value is the value when border_type is equal to constant. Default: geodesic which ignores the values that are outside the image when applying the operation.

  • border_value (float, optional) – Value to fill past edges of input if border_type is constant. Default: 0.0

  • max_val (float, optional) – The value of the infinite elements in the kernel. Default: 10000.0

  • engine (str, optional) – convolution is faster and less memory hungry, and unfold is more stable numerically Default: 'unfold'

Return type

Tensor

Returns

Gradient image with shape \((B, C, H, W)\).

Note

See a working example here.

Example

>>> tensor = torch.rand(1, 3, 5, 5)
>>> kernel = torch.ones(3, 3)
>>> gradient_img = gradient(tensor, kernel)
kornia.morphology.top_hat(tensor, kernel, structuring_element=None, origin=None, border_type='geodesic', border_value=0.0, max_val=10000.0, engine='unfold')[source]

Return the top hat transformation of an image.

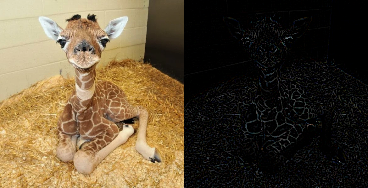

_images/top_hat.png

That means, (image - opened_image) applying the same kernel in each channel. The kernel must have 2 dimensions.

See opening() for details.

Parameters

  • tensor (Tensor) – Image with shape \((B, C, H, W)\).

  • kernel (Tensor) – Positions of non-infinite elements of a flat structuring element. Non-zero values give the set of neighbors of the center over which the operation is applied. Its shape is \((k_x, k_y)\). For full structural elements use torch.ones_like(structural_element).

  • structuring_element (Optional[Tensor], optional) – Structuring element used for the grayscale dilation. It may be a non-flat structuring element. Default: None

  • origin (Optional[List[int]], optional) – Origin of the structuring element. Default: None and uses the center of the structuring element as origin (rounding towards zero).

  • border_type (str, optional) – It determines how the image borders are handled, where border_value is the value when border_type is equal to constant. Default: geodesic which ignores the values that are outside the image when applying the operation.

  • border_value (float, optional) – Value to fill past edges of input if border_type is constant. Default: 0.0

  • max_val (float, optional) – The value of the infinite elements in the kernel. Default: 10000.0

  • engine (str, optional) – convolution is faster and less memory hungry, and unfold is more stable numerically Default: 'unfold'

Return type

Tensor

Returns

Top hat transformed image with shape \((B, C, H, W)\).

Note

See a working example here.

Example

>>> tensor = torch.rand(1, 3, 5, 5)
>>> kernel = torch.ones(3, 3)
>>> top_hat_img = top_hat(tensor, kernel)
kornia.morphology.bottom_hat(tensor, kernel, structuring_element=None, origin=None, border_type='geodesic', border_value=0.0, max_val=10000.0, engine='unfold')[source]

Return the bottom hat transformation of an image.

_images/bottom_hat.png

That means, (closed_image - image) applying the same kernel in each channel. The kernel must have 2 dimensions.

See closing() for details.

Parameters

  • tensor (Tensor) – Image with shape \((B, C, H, W)\).

  • kernel (Tensor) – Positions of non-infinite elements of a flat structuring element. Non-zero values give the set of neighbors of the center over which the operation is applied. Its shape is \((k_x, k_y)\). For full structural elements use torch.ones_like(structural_element).

  • structuring_element (Optional[Tensor], optional) – Structuring element used for the grayscale dilation. It may be a non-flat structuring element. Default: None

  • origin (Optional[List[int]], optional) – Origin of the structuring element. Default: None and uses the center of the structuring element as origin (rounding towards zero).

  • border_type (str, optional) – It determines how the image borders are handled, where border_value is the value when border_type is equal to constant. Default: geodesic which ignores the values that are outside the image when applying the operation.

  • border_value (float, optional) – Value to fill past edges of input if border_type is constant. Default: 0.0

  • max_val (float, optional) – The value of the infinite elements in the kernel. Default: 10000.0

  • engine (str, optional) – convolution is faster and less memory hungry, and unfold is more stable numerically Default: 'unfold'

Return type

Tensor

Returns

Top hat transformed image with shape \((B, C, H, W)\).

Note

See a working example here.

Example

>>> tensor = torch.rand(1, 3, 5, 5)
>>> kernel = torch.ones(3, 3)
>>> bottom_hat_img = bottom_hat(tensor, kernel)
